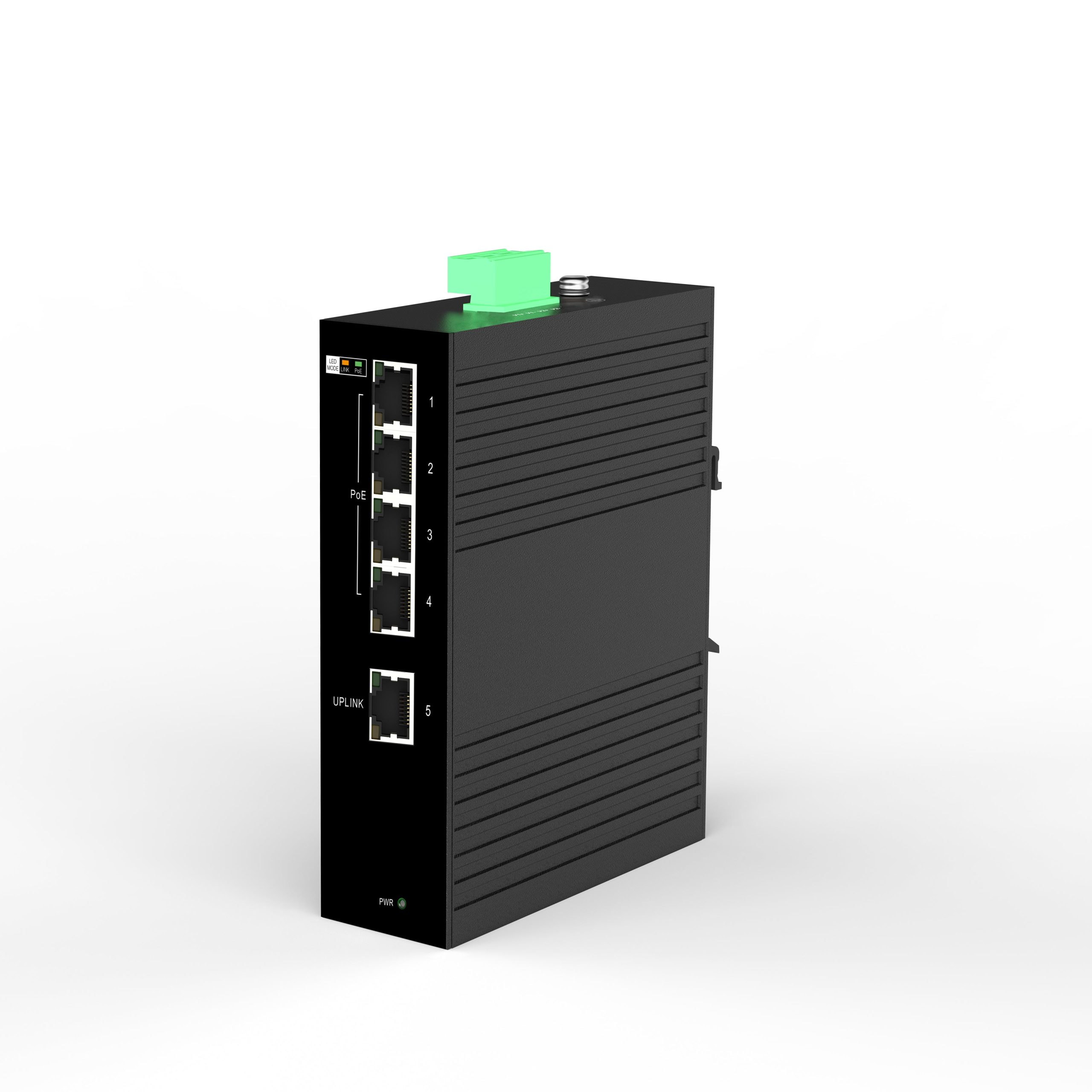

IDS1005-4P 5FE Din-rail Unmanaged Industrial PoE Switch
Sailtel IDS1005-4P unmanaged industrial 5-port 10/100 Mbps Fast Ethernet switch with four IEEE 802.3af/at PoE outputs. 44–57V DC input and up to 120W total PoE budget.
$55.71
100 in stock
100 in stock
Description
1Â Description
The IDS1005-4P is a high performance Ethernet Switch with 5 x10/100TX RJ45 Copper ports with 4 PoE, which meets the high reliability requirements demanded by industrial rolling stock applications. It provides L2 wire speed for network aggregation deployment. For more usage flexibilities, IDS1005-4P supports wide operating temperature from -40~75℃.
Operating Modes & Applications
2 Feature
- Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE802.3af, IEEE802.3at

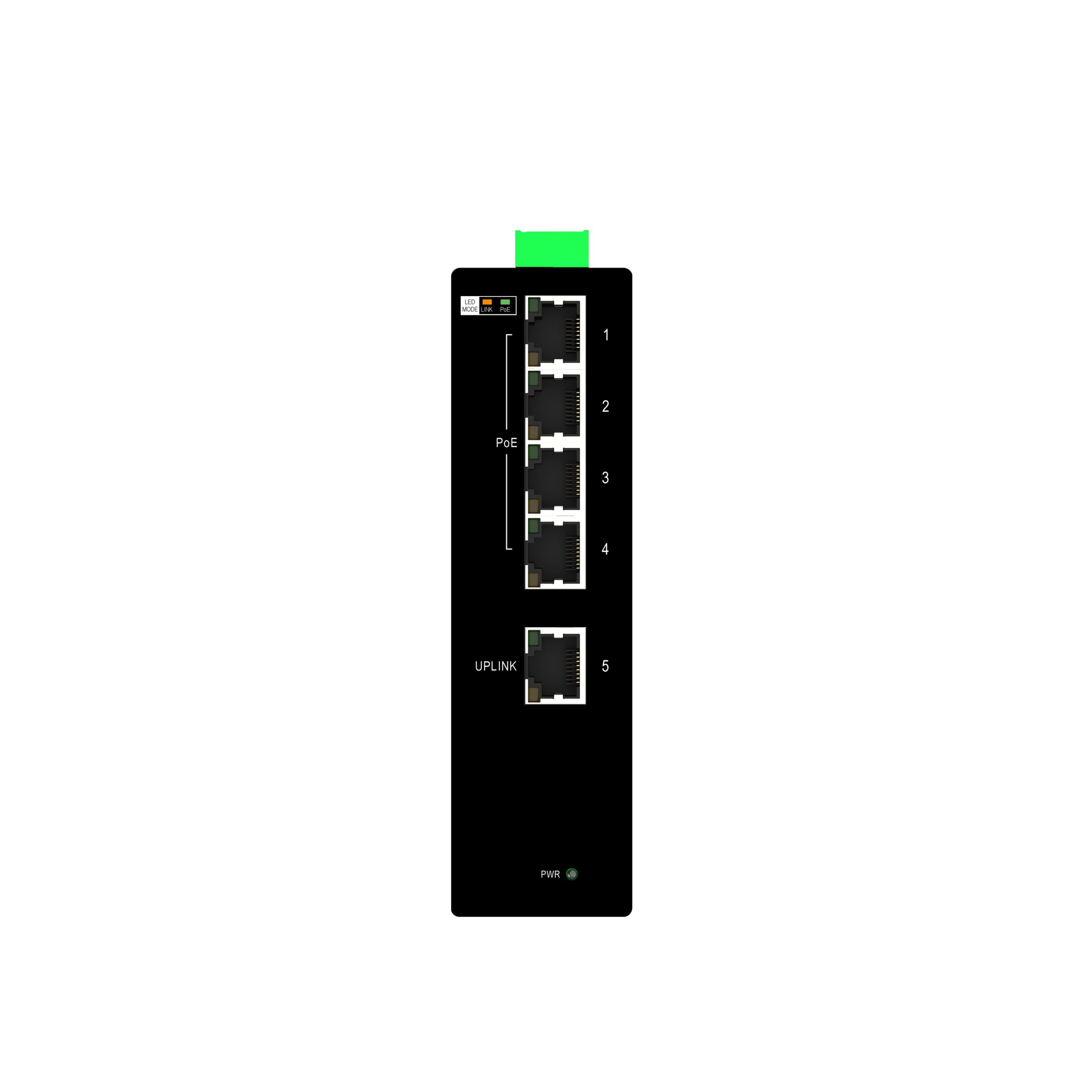

- Provide 5 10/100TX RJ45 Copper ports with 4 PoE
- PoE Budget 120W
- High back-plane bandwidth 1Gbps
- 3x Flow control
- Surge protection for power port and data ports
- Wide power input: 44~57VDC
- Wide working temperature: -40~75℃
- IP30 Aluminum case
- 200,000 hours MTBF (Parts count reliability prediction)Â
Technical Support & After-Sales
3 Specifications
|
Attributes |
|
|
Networking Interfaces |
5 10/100M RJ45 Copper ports. |
|
LED Indicators |
Power, Link/Act, PoE |
|
Copper Cable |
|
|
10Base-T |
2-pair UTP/STP Cat. 3,4,5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
100Base-T |
2-pair UTP/STP Cat. 5/5E,6 cable EIA/TIA-568 100-ohm (100m) |
|
Performance |
|
|
Switching Capacity |
1 Gbps |
|
Forwarding Capacity |
744K |
|
Forwarding Mode |
Store and Forward |
|
Packet Buffer Memory |
512 Kbit |
|
MAC Address Table |
1K |
|
PoE Budget |
120W |
|
Physical |
|
|
Dimensions |
150x100x32mm |
|
Weight |
 |
|
Operating Temperature |
-40 to 75℃ |
|
Storage Temperature |
-40 to 85℃ |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Power Method |
44-57VDC |
|
Max. Power Consumption |
Including PoE Output: 125W Excluding PoE Output: 5W |
|
EMC Safety |
FCC, CE, RoHS |
|
Reliability |
 |
|
Power over Ethernet |
|
|
PoE Interfaces |
Ports 1-4 |
|
PoE Standard |
IEEE802.3af, IEEE802.3at |
|
Max. PoE Wattage per Port |
30W |
|
PoE Voltage |
52VDC (Depend on Power Adapter) |
|
PoE Pin Assignment |
V- (RJ45 Pin1,2), V+ (RJ45 Pin 3,6) |
|
Package List |
|
|
Industrial PoE Switch |
1pcs |
|
User Manual |
1pcs |
Â
4 Order Information
|
Part Number |
Product Description |
|
IDS1005-4P |
5FE Din-rail Unmanaged Industrial PoE Switch |
Technical Specifications
Overview
| Ethernet Ports | 5 × 10/100 Mbps RJ45 |
|---|---|
| PoE Ports | 4 × RJ45 PoE (Ports 1–4) |
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Total PoE Budget | Up to 120W (adequate DC power supply required) |
| Maximum PoE Power Per Port | 30W |
| Input Voltage | 44–57V DC |
| Management | Unmanaged |
| Mounting | DIN-Rail |
| Operating Temperature | -40°C to 75°C |
| Switching Capacity | 1 Gbps |
| Dimensions | 150 × 100 × 32 mm |
Datasheet & Downloads
Frequently Asked Questions
What does an industrial PoE injector do?
An industrial PoE injector adds DC power to an existing Ethernet connection, allowing a non-PoE network switch to power a compatible PoE device through the Ethernet cable.
How many devices can a single-port PoE injector power?
A single-port PoE injector provides one powered Ethernet output and is designed to power one compatible PoE device at a time.
Does the IPE95e provide 95W with a 12V DC input?
No. The IPE95e supports up to 60W PoE output with 12V DC input. With 24V or 48V DC input, the maximum stated PoE budget is up to 95W.
What DC input voltage does the IPE95e support?
The IPE95e supports a 12–48V DC input through its terminal block.
Can the IPE95e be used with a non-PoE network switch?
Yes. Connect the non-PoE switch to the Ethernet Data Input port and the powered device to the PoE Output port.
Does the IPE95e support Gigabit Ethernet?
Yes. Both Ethernet ports support 10/100/1000Base-T Ethernet. SPEC IPE95e V1.0
What types of devices can the IPE95e power?
The IPE95e can be used with compatible PoE devices such as IP cameras and wireless access points, subject to the device’s PoE power requirement. SPEC IPE95e V1.0
How can the IPE95e be installed?
The IPE95e supports both DIN-rail and wall-mount installation. SPEC IPE95e V1.0
How does the input voltage affect the IPE95e PoE power budget?
The IPE95e provides up to 60W PoE output with a 12V DC input and up to 95W with a 24V or 48V DC input. Select the DC supply according to the power requirement of the connected device.
What PoE standards does the IPE95e support?
The IPE95e supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt PoE applications and also supports LTPoE++ high-power PSE operation.
What operating temperature does the IPE95e support?
The IPE95e is designed for operation from -40°C to 80°C for industrial environments.
