IPE95e 95W IEEE802.3bt Gigabit Industrial PoE Injector
Industrial 95W Gigabit IEEE 802.3bt / LTPoE++ PoE Injector, 12–48V DC input, DIN-rail / wall-mount. Maximum output depends on input voltage: up to 60W at 12V DC; up to 95W at 24V/48V DC.
$159.00
94 in stock
94 in stock
Description
1 Description
IPE95e is an Industrial hardened Gigabit single-port PoE+ IEEE 802.3bt / LTPoE++ 95W 10/100/1000Base-TX PoE Injector with 12~48V DC Input and Voltage Booster. It allows you to connect the PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m. Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. It provides 95W PoE output.

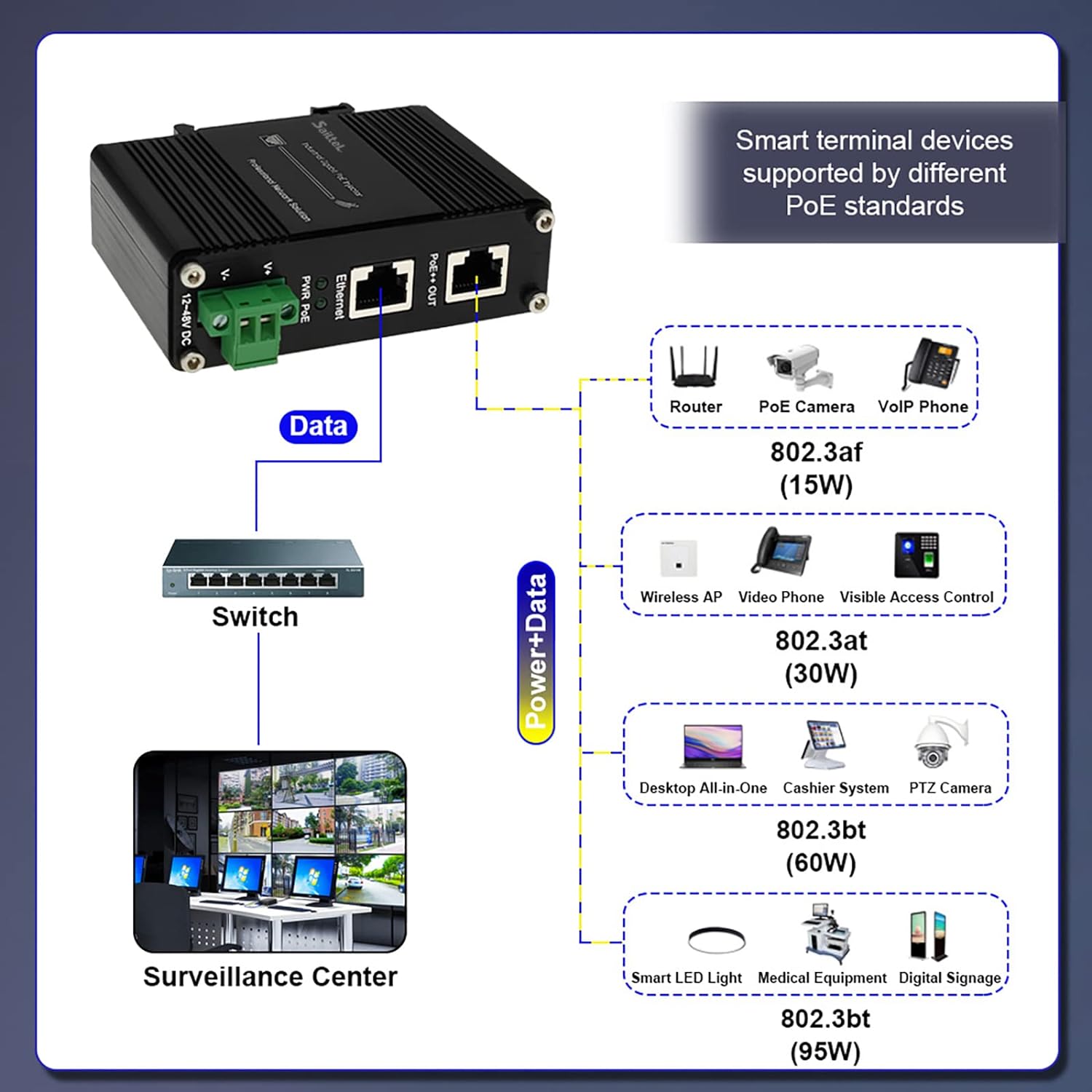

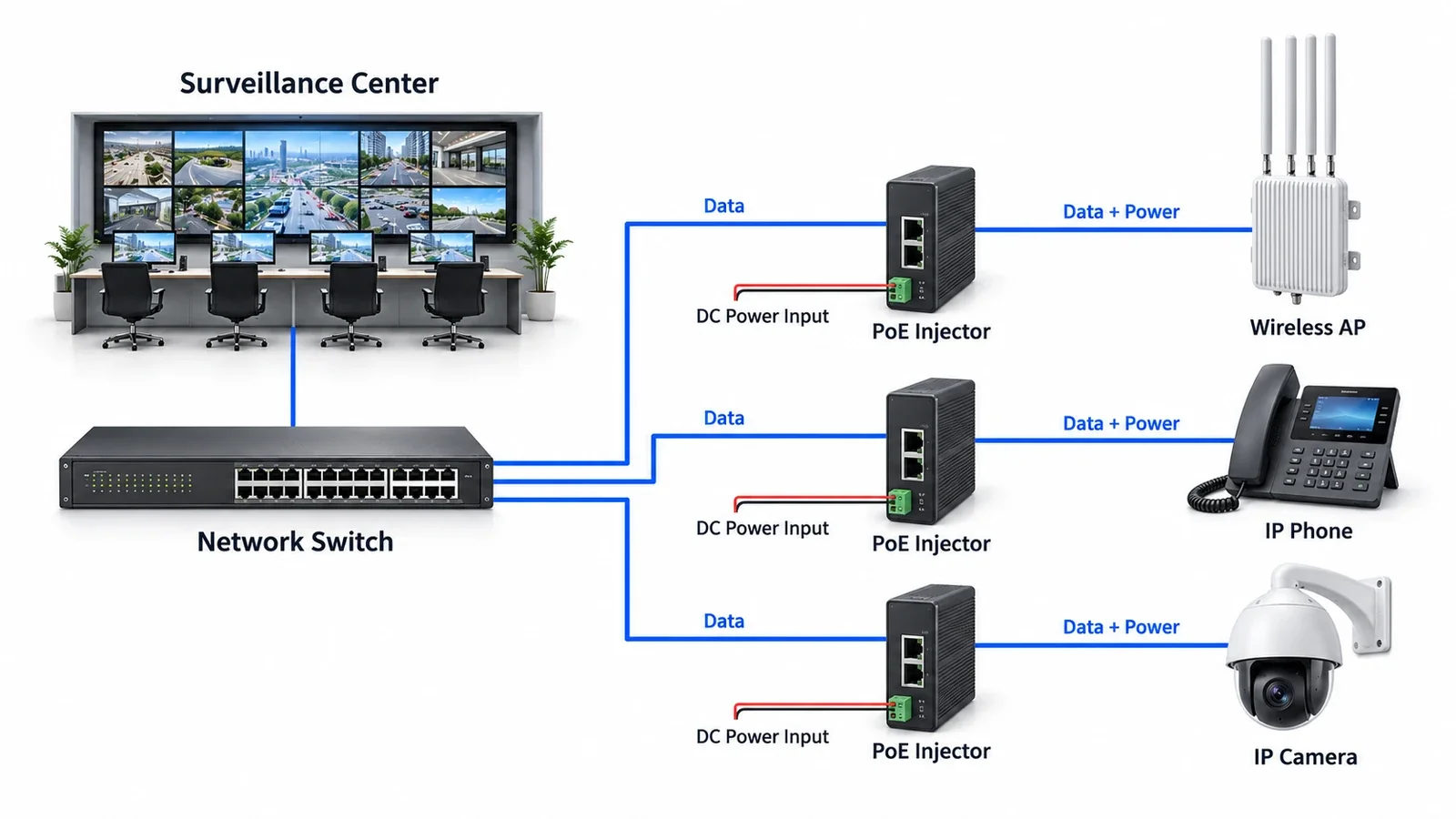

Typical Applications

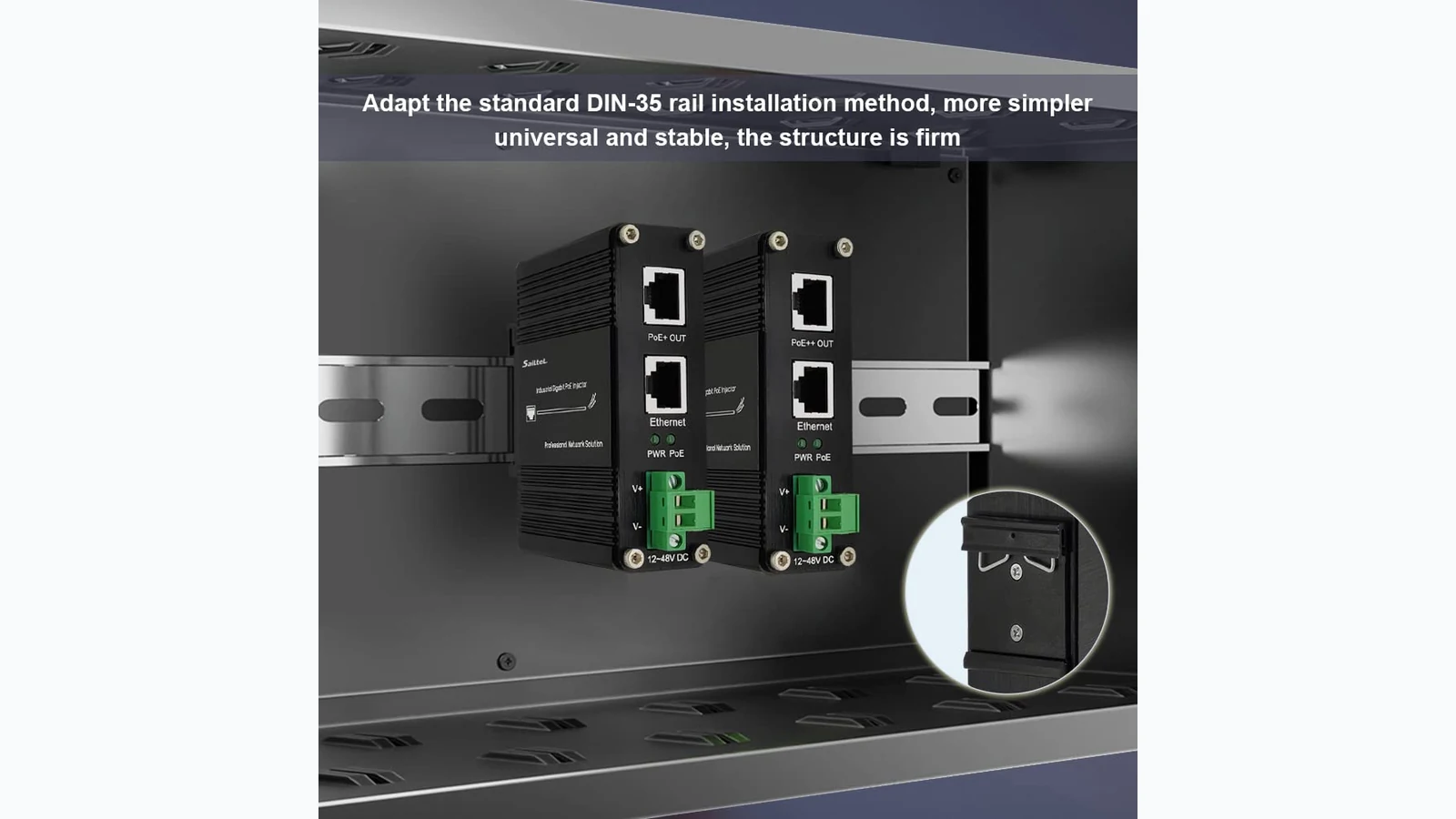

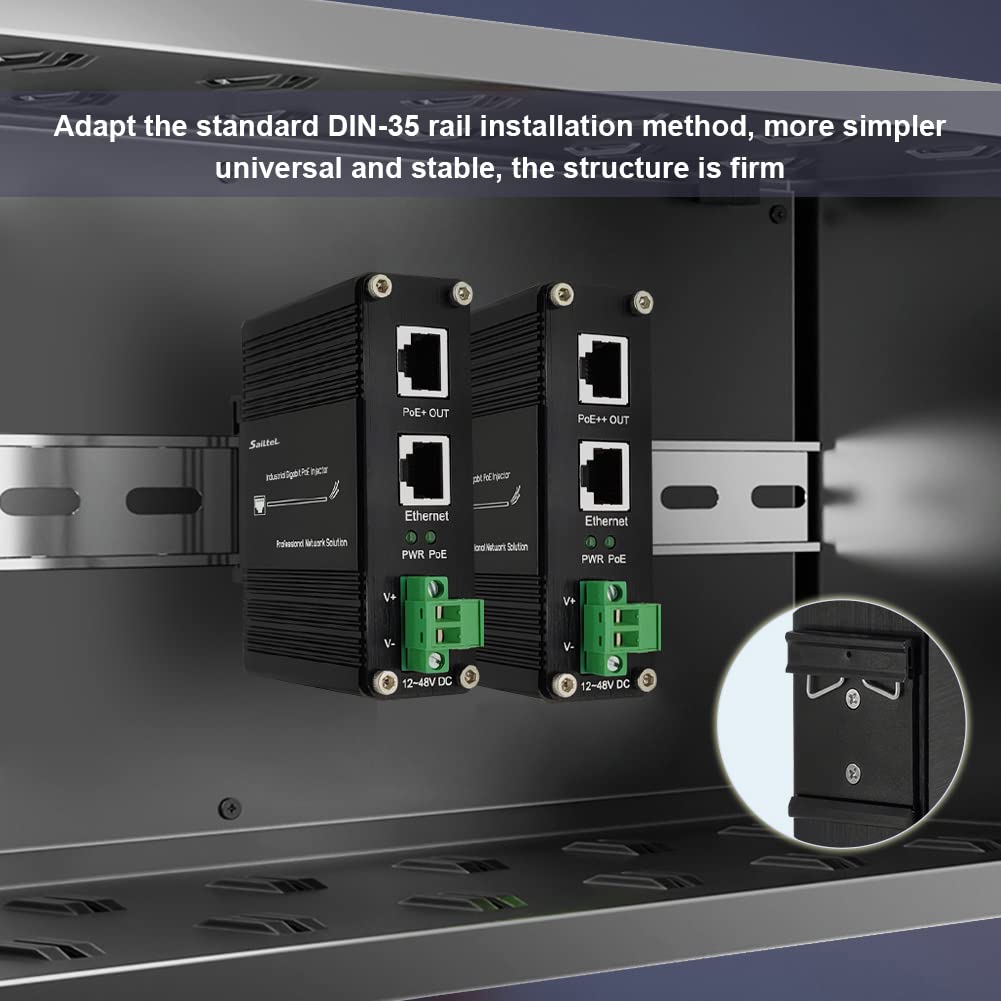

Typical DIN-Rail Installation
2 Feature
- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power over Ethernet Output Port (Data + Power)
- Support 95W LTPoE++ Power Sourcing Equipment
- Complies with IEEE 802.3at/bt PoE end-span/mid-span PSE
- Support 10/100/1000Base-TX
- Extensive LED indicators for PoE diagnostics
- 12~48V DC wide range power input with power booster function
- Up to 95-watt PoE budget (48VDC), 95-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
- Supports DIN-Rail and Wall-mount installation

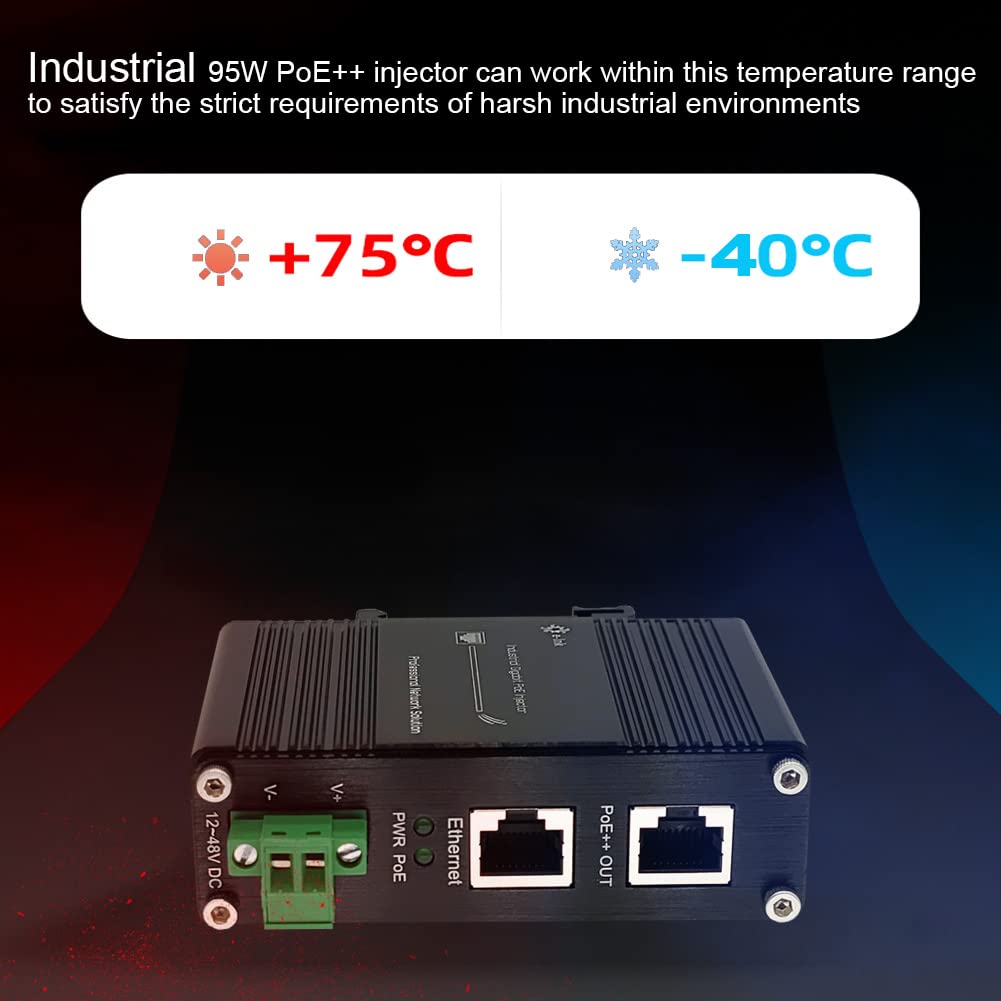

- Environmentally Hardened -40°C to 80°C
Connection & Selection Guide
Technical Support & After-Sales
3 Order Information
| Models | Description |
|---|---|
| IPE95e | IEEE802.3bt Gigabit Industrial PoE Injector (95W) |
Technical Specifications
Overview
| Power Output | 95W |
|---|---|
| PoE Standard | IEEE 802.3at, IEEE 802.3bt, LTPoE++ |
| Ethernet Speed | 1G |
| Input Voltage | 12–48V DC |
| Output Power Notes | Up to 95W at 24V/48V DC input; up to 60W at 12V DC input. |
| Data In Port | 1 × RJ45 Ethernet Data Input |
| PoE Out Port | 1 × RJ45 PoE Output (Data + Power) |
| Mounting | DIN-Rail / Wall-Mount |
| Operating Temperature | -40°C to 80°C |

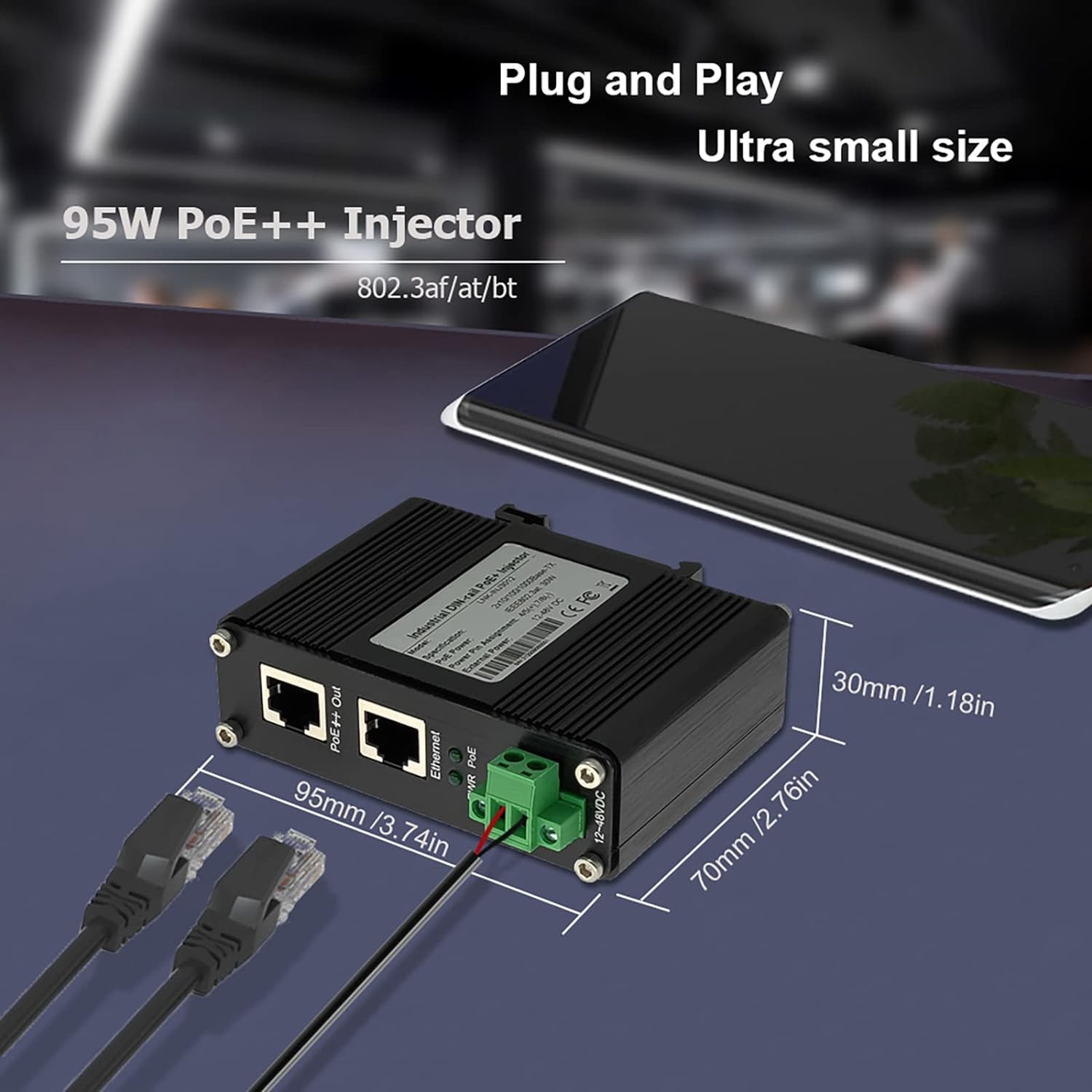

| Dimensions | 95 × 70 × 30 mm |

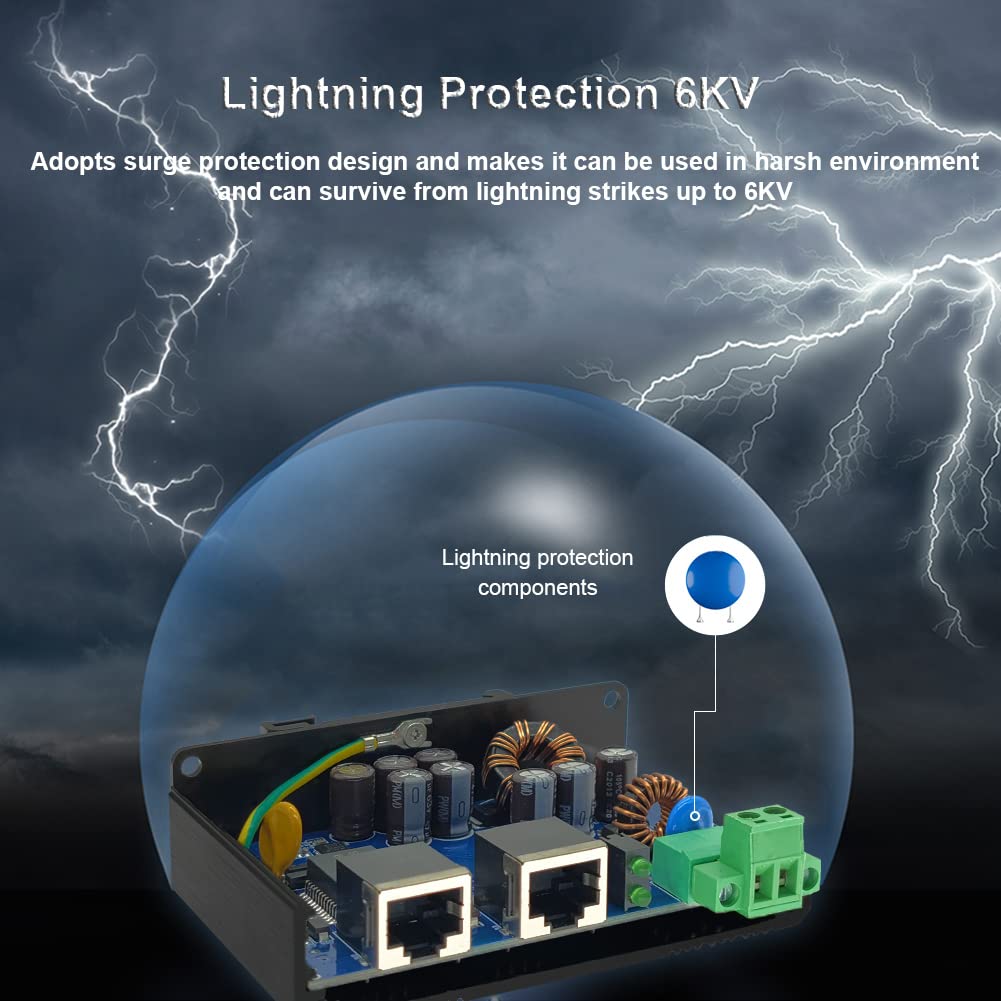

| Protection | RJ45 Surge Protection: 1KV; Power Surge Protection: 500V; ESD Protection: 4KV / 8KV |
Datasheet & Downloads
Frequently Asked Questions
What does an industrial PoE injector do?
An industrial PoE injector adds DC power to an existing Ethernet connection, allowing a non-PoE network switch to power a compatible PoE device through the Ethernet cable.
How many devices can a single-port PoE injector power?
A single-port PoE injector provides one powered Ethernet output and is designed to power one compatible PoE device at a time.
Does the IPE95e provide 95W with a 12V DC input?
No. The IPE95e supports up to 60W PoE output with 12V DC input. With 24V or 48V DC input, the maximum stated PoE budget is up to 95W.
What DC input voltage does the IPE95e support?
The IPE95e supports a 12–48V DC input through its terminal block.
Can the IPE95e be used with a non-PoE network switch?

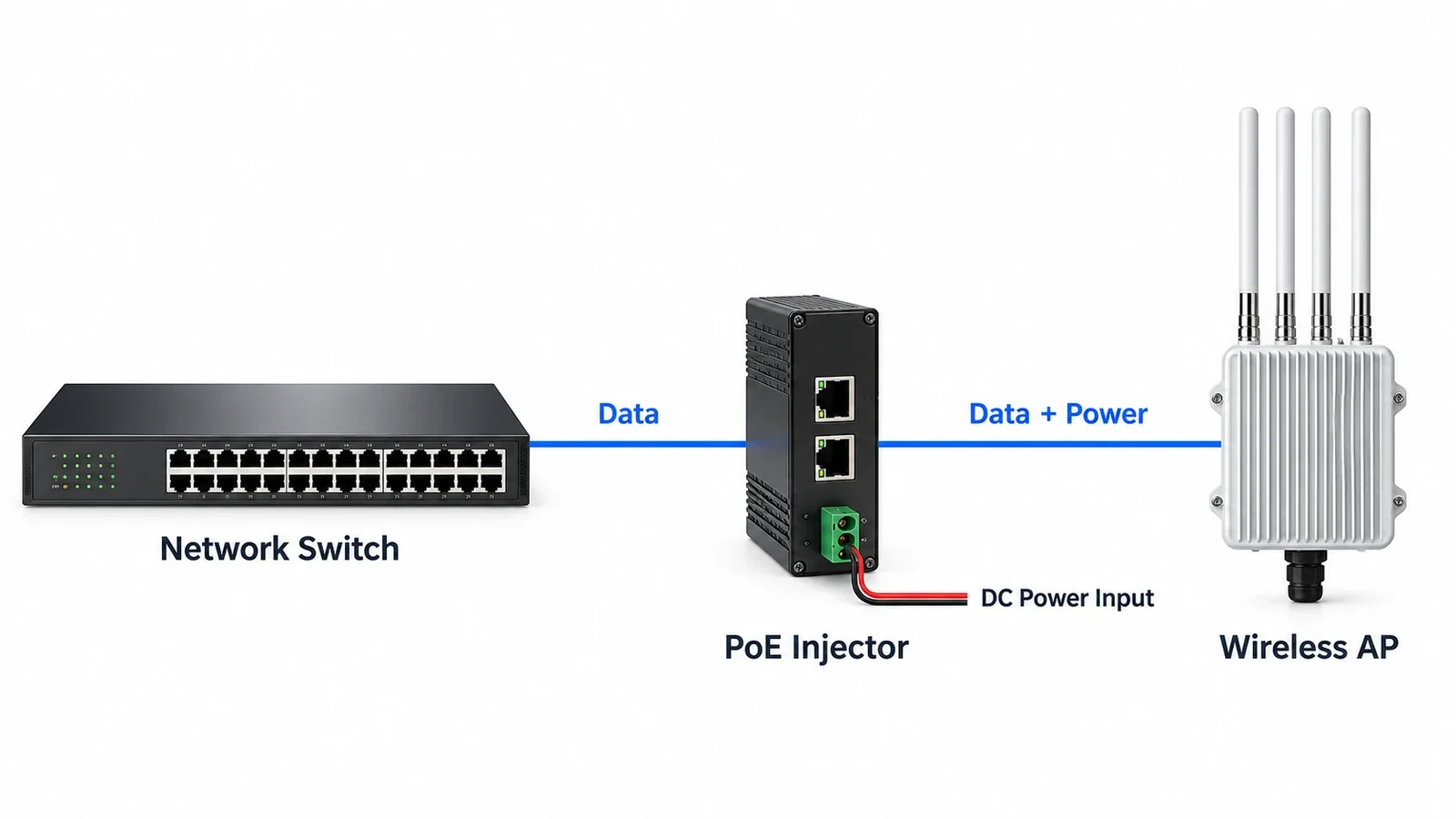

Yes. Connect the non-PoE switch to the Ethernet Data Input port and the powered device to the PoE Output port.
Does the IPE95e support Gigabit Ethernet?
Yes. Both Ethernet ports support 10/100/1000Base-T Ethernet. SPEC IPE95e V1.0
What types of devices can the IPE95e power?
The IPE95e can be used with compatible PoE devices such as IP cameras and wireless access points, subject to the device’s PoE power requirement. SPEC IPE95e V1.0
How can the IPE95e be installed?
The IPE95e supports both DIN-rail and wall-mount installation. SPEC IPE95e V1.0
How does the input voltage affect the IPE95e PoE power budget?
The IPE95e provides up to 60W PoE output with a 12V DC input and up to 95W with a 24V or 48V DC input. Select the DC supply according to the power requirement of the connected device.
What PoE standards does the IPE95e support?
The IPE95e supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt PoE applications and also supports LTPoE++ high-power PSE operation.
What operating temperature does the IPE95e support?
The IPE95e is designed for operation from -40°C to 80°C for industrial environments.
