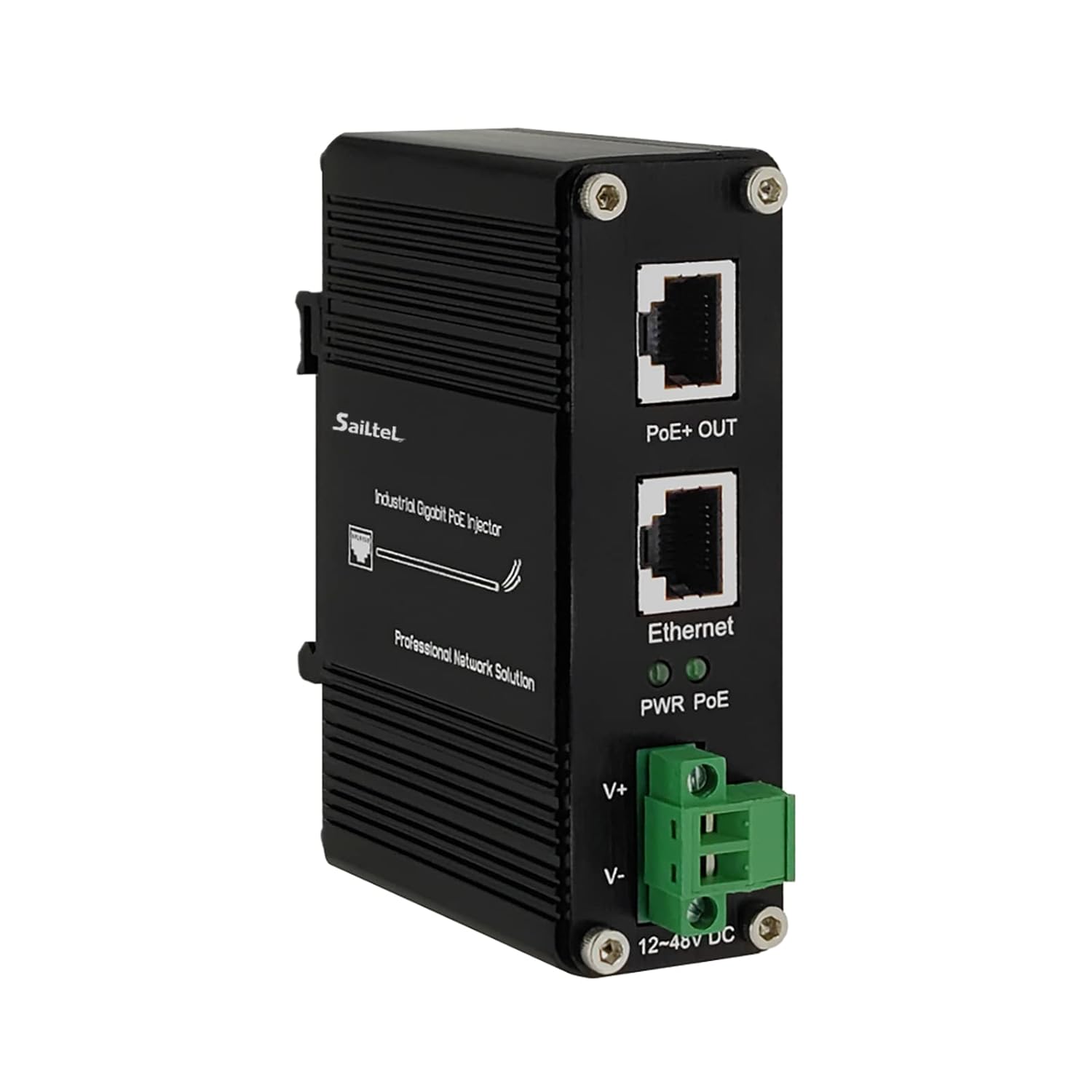

IPE30e 30W IEEE802.3at Gigabit Industrial PoE Injector
Sailtel IPE30e 30W Gigabit IEEE 802.3at PoE+ injector for compatible cameras and access points. Industrial hardened design, 12–48V DC input, DIN-rail or wall mounting.
$109.00
150 in stock
150 in stock
Description
1Â Description

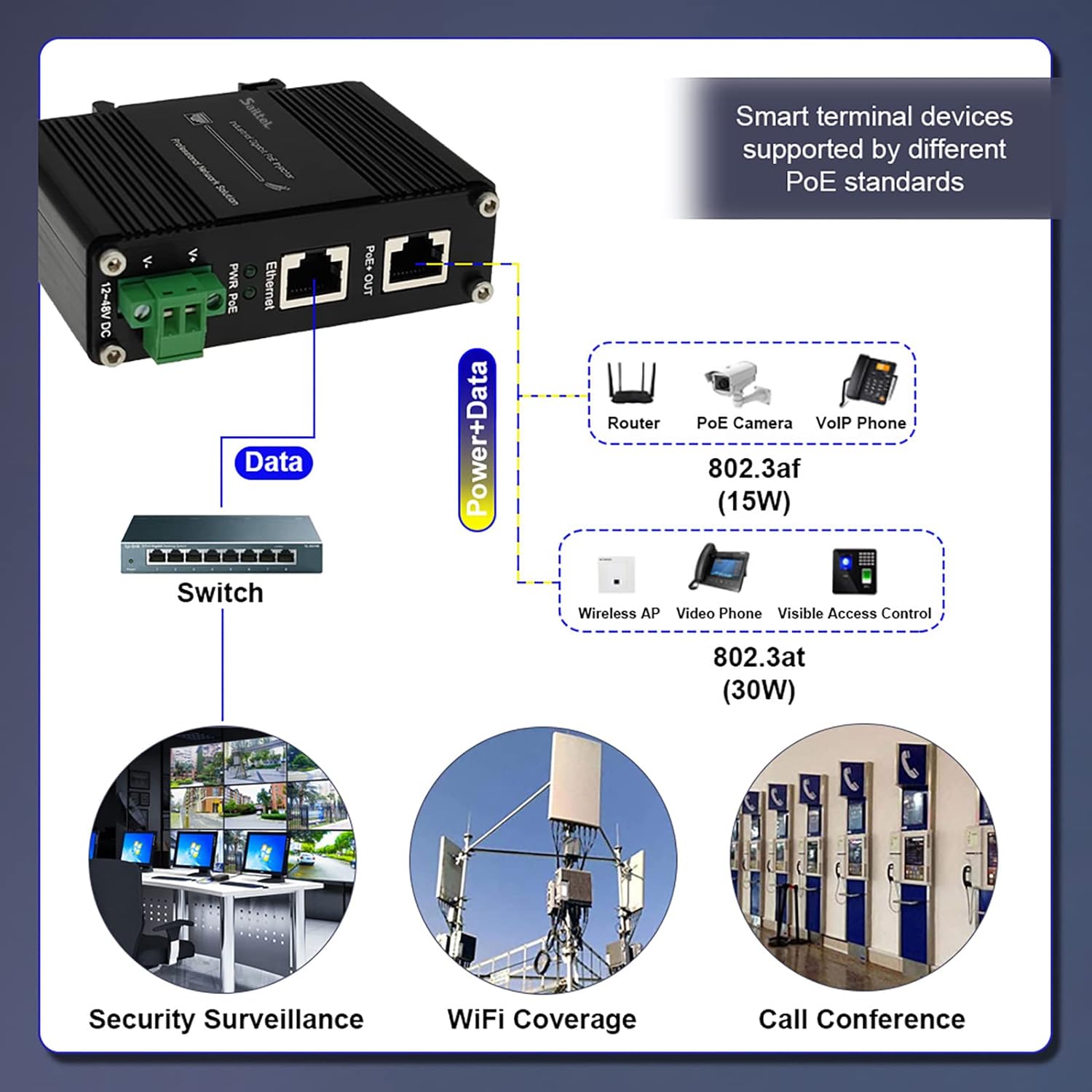

IPE30e is a Hardened Gigabit High Power PoE Injector allows you to connect the IEEE 802.3 af/at PoE device such as camera and access point with a non PoE LAN switch within the distance of 100m.
Both the Ethernet port (to switch) and the PoE Out port (to PoE device) support 10/100/1000Base-T and are compliant with IEEE 802.3ab. The PoE Out port is also compliant with IEEE 802.3 at.
It provides an integrated power solution with a wide range voltage of 12~48VDC for high availability applications.

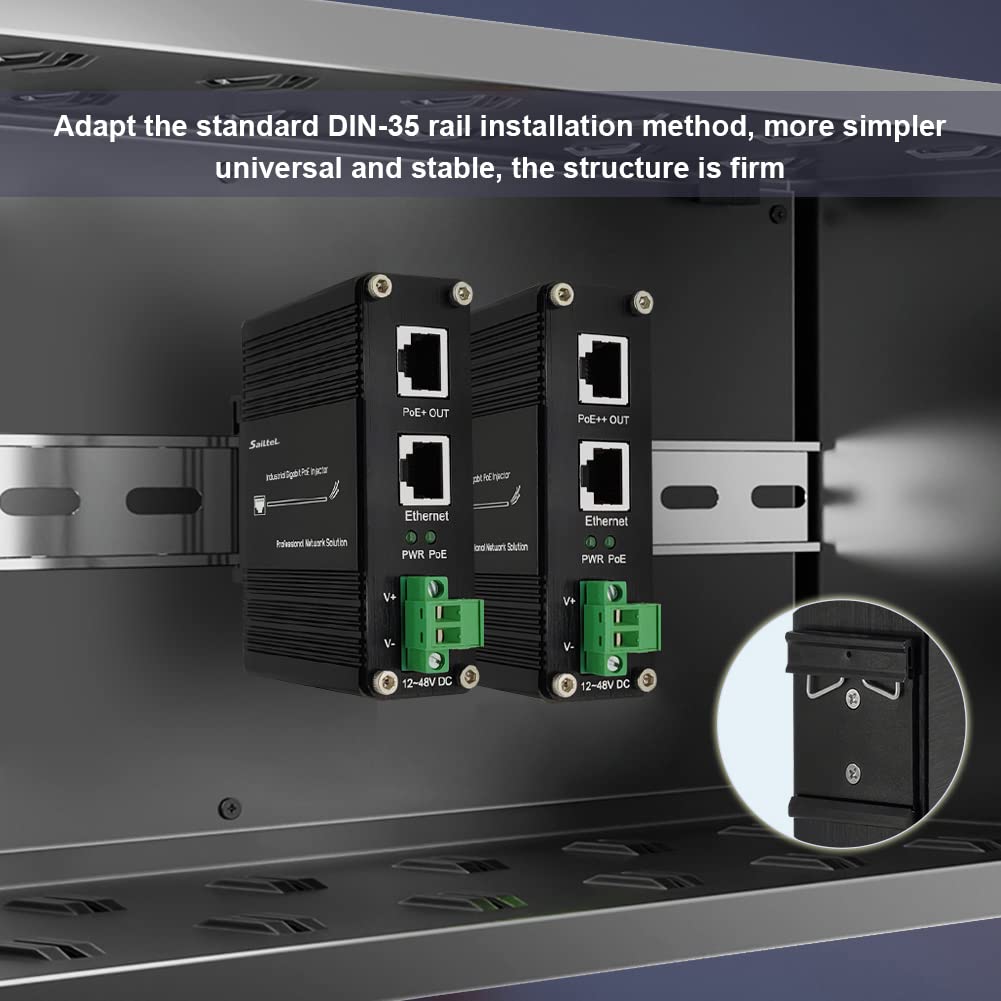

Typical DIN-Rail Installation
2Â Feature

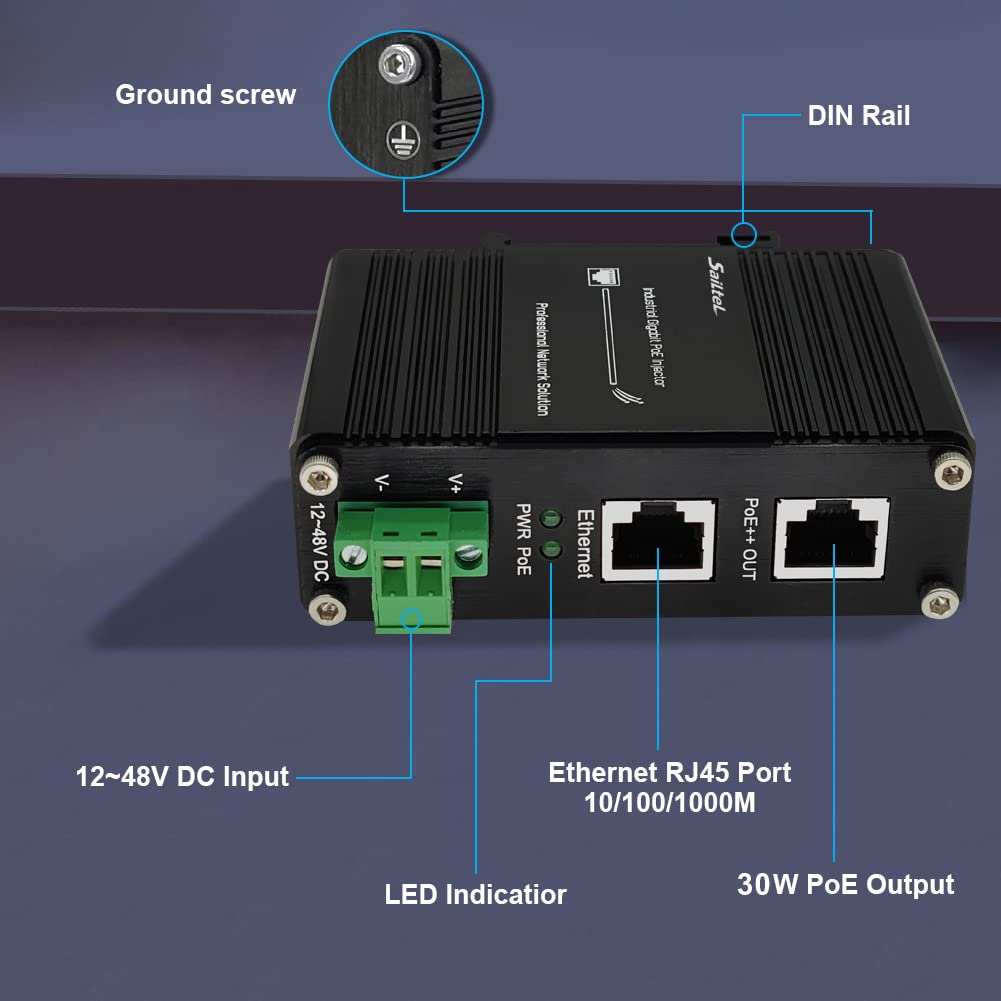

- 12~48VDC Power Input
- 1 RJ45 Ethernet Data Input Port + 1 RJ45 Power Over Ethernet Output Port (Data + Power)
- Support IEEE802.3at Power over Ethernet (PoE+) Power Sourcing Equipment
- Support 10/100/1000Base-TX
- Support DIN-Rail & Wall-mount installation
- Extensive LED indicators for PoE diagnostics

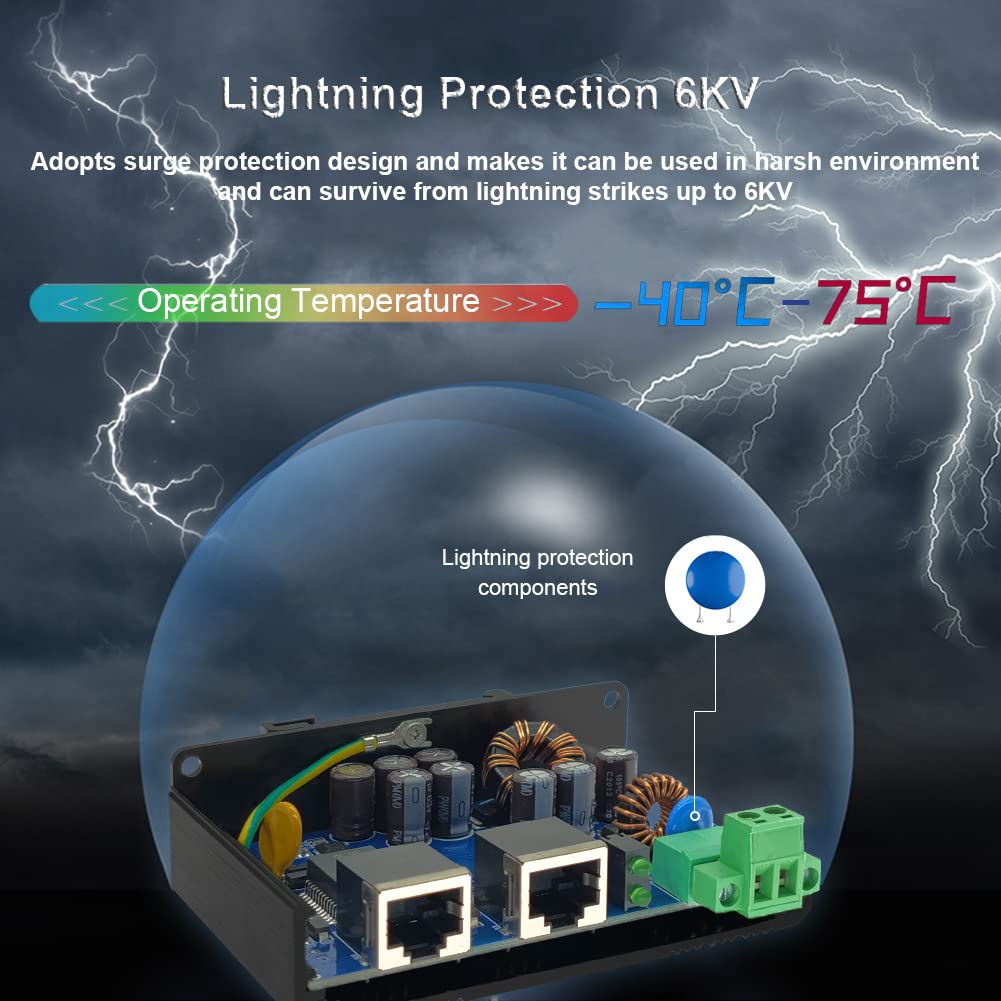

- Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature
Operating Modes & Applications
Connection & Selection Guide
Technical Support & After-Sales
3Â Order Information
|
Models |
|
|
IPE30e |
IEEE802.3at Gigabit Industrial PoE Injector (30W) |
Technical Specifications
Overview
| Power Output | 30W |
|---|---|
| PoE Standard | IEEE 802.3af / IEEE 802.3at |
| Ethernet Speed | 10/100/1000 Mbps |
| Input Voltage | 12–48V DC |
| Data In Port | 1 × RJ45 Ethernet Data Input |
| PoE Out Port | 1 × RJ45 PoE Output (Data + Power) |
| Mounting | DIN-Rail / Wall-Mount |
| Operating Temperature | -40°C to 80°C |
Datasheet & Downloads
Frequently Asked Questions
What does an industrial PoE injector do?
An industrial PoE injector adds DC power to an existing Ethernet connection, allowing a non-PoE network switch to power a compatible PoE device through the Ethernet cable.
How many devices can a single-port PoE injector power?
A single-port PoE injector provides one powered Ethernet output and is designed to power one compatible PoE device at a time.
Does the IPE95e provide 95W with a 12V DC input?
No. The IPE95e supports up to 60W PoE output with 12V DC input. With 24V or 48V DC input, the maximum stated PoE budget is up to 95W.
What DC input voltage does the IPE95e support?
The IPE95e supports a 12–48V DC input through its terminal block.
Can the IPE95e be used with a non-PoE network switch?
Yes. Connect the non-PoE switch to the Ethernet Data Input port and the powered device to the PoE Output port.
Does the IPE95e support Gigabit Ethernet?
Yes. Both Ethernet ports support 10/100/1000Base-T Ethernet. SPEC IPE95e V1.0
What types of devices can the IPE95e power?
The IPE95e can be used with compatible PoE devices such as IP cameras and wireless access points, subject to the device’s PoE power requirement. SPEC IPE95e V1.0
How can the IPE95e be installed?
The IPE95e supports both DIN-rail and wall-mount installation. SPEC IPE95e V1.0
How does the input voltage affect the IPE95e PoE power budget?
The IPE95e provides up to 60W PoE output with a 12V DC input and up to 95W with a 24V or 48V DC input. Select the DC supply according to the power requirement of the connected device.
What PoE standards does the IPE95e support?
The IPE95e supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt PoE applications and also supports LTPoE++ high-power PSE operation.
What operating temperature does the IPE95e support?
The IPE95e is designed for operation from -40°C to 80°C for industrial environments.
