MIDS1605-4P Mini Din-rail Unmanaged Industrial Gigabit PoE Ethernet Switch
Sailtel MIDS1605-4P mini industrial unmanaged Gigabit PoE+ switch, 4 PoE+ RJ45 ports and 1 Gigabit RJ45 uplink. 12–48V DC input and DIN-rail mounting; available PoE budget depends on input voltage.
$45.71
99 in stock
99 in stock
Description
1Â Description
MIDS1605-4P is a Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch with 12~48VDC wide range power input. This unmanaged industrial Ethernet switch is designed to match the critical industrial standards. With reliable and simple operation against vibration and shock, and wide operation temperature range, it could match a variety of harsh environment. Contact Sailtel for compliance documentation applicable to your destination or project. It is a good choice for an economical solution for industrial Ethernet connections.
2Â Feature

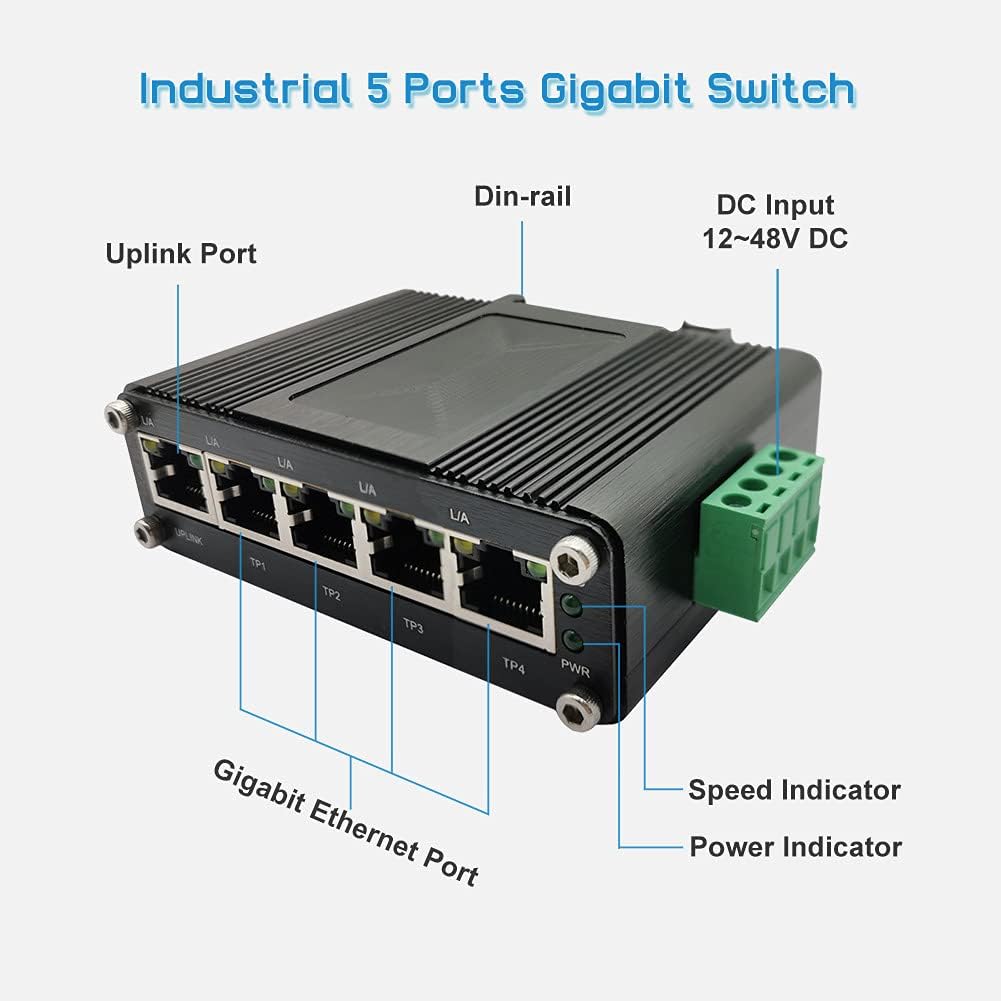

- 5 x 10/100/1000BASE-T ports
- 5 x 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
- 12~48VDC wide range power input
- Supports 802.3x Flow control

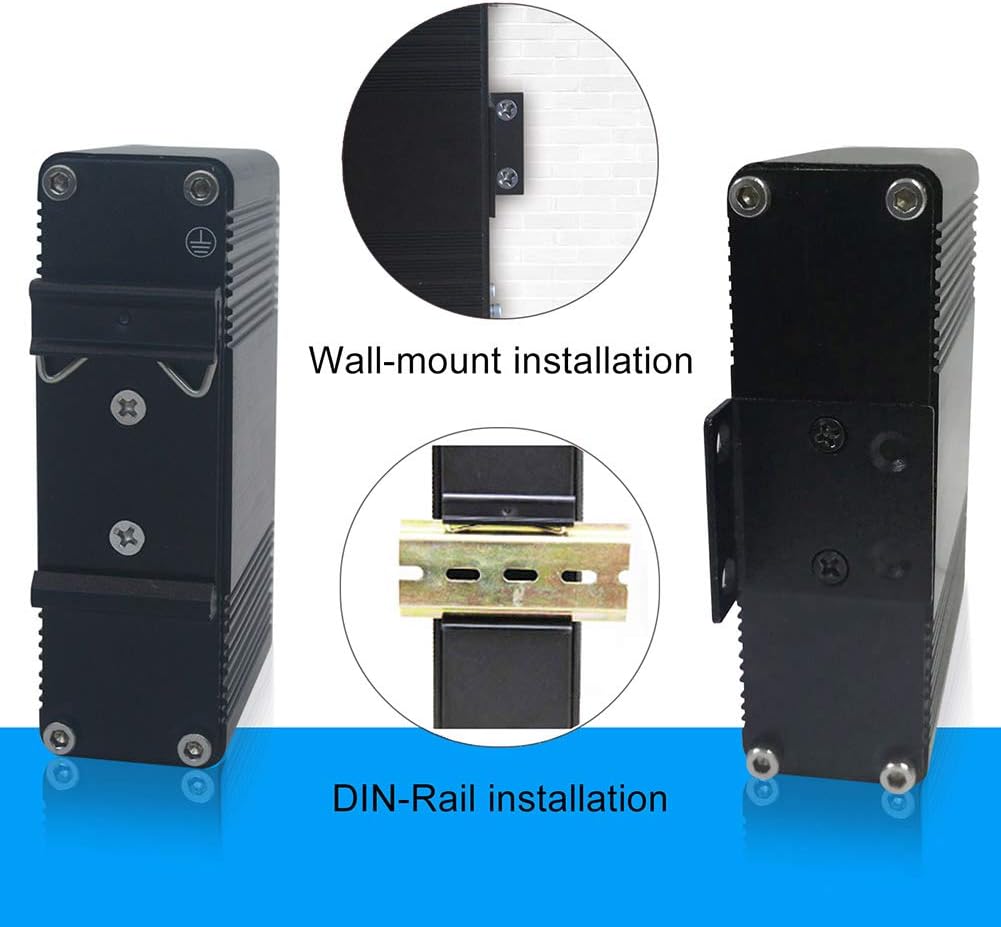

- Supports DIN-Rail and Wall-mount installation
- Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)

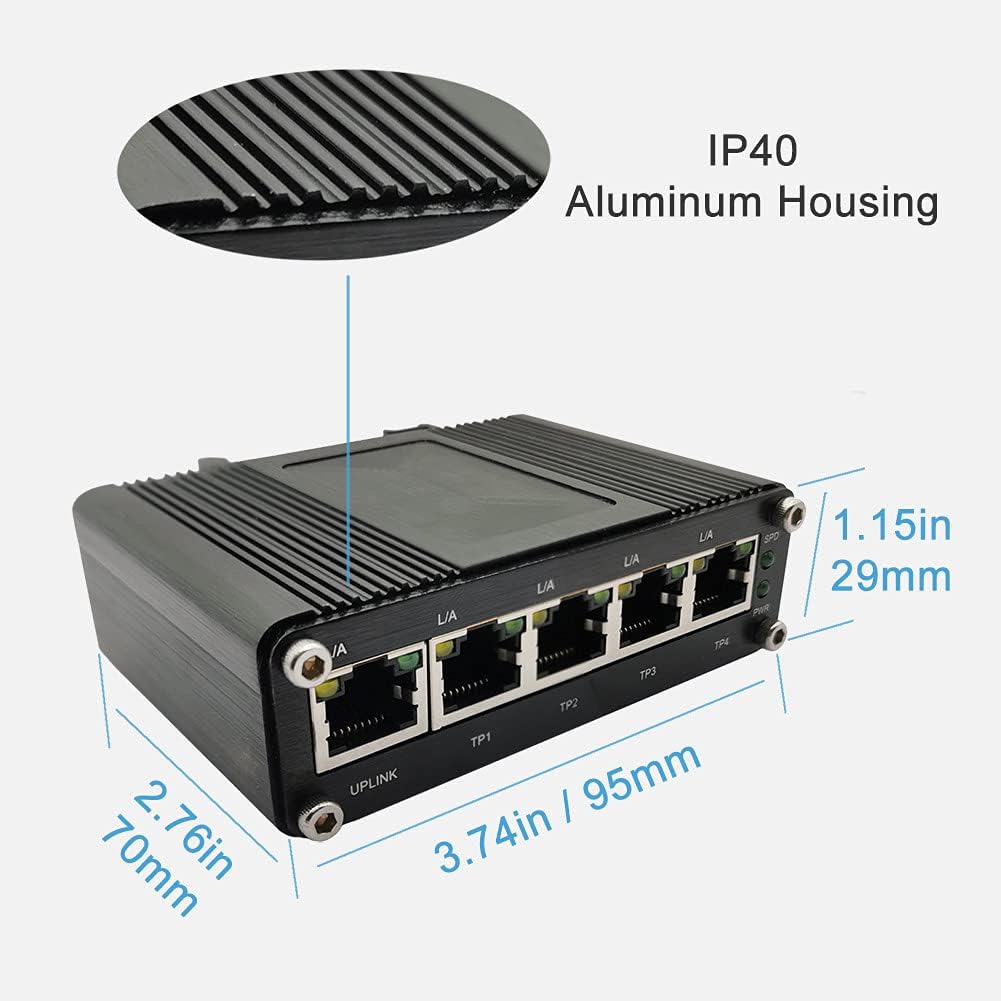

- Industry standard design, dustproof and close design IP40, rugged high-strength metal case
- -40°C to 80°C (-40°F to 176°F) operating temperature
Operating Modes & Applications
Technical Support & After-Sales
3Â Order Information
|
Part Number |
Product Description |
|
MIDS1605-4P |
Mini Din-rail Unmanaged Industrial Gigabit PoE Ethernet Switch |
Technical Specifications
Overview
| Ethernet Ports | 5 × 10/100/1000 Mbps RJ45 |
|---|---|
| PoE Ports | 4 × IEEE 802.3at PoE+ (Ports 1–4) |
| Total PoE Budget | Up to 120W at 48V DC; 90W at 24V DC; 60W at 12V DC |
| Input Voltage | 12–48V DC |
| PoE Standard | IEEE 802.3at |
| Management | Unmanaged |
| Mounting | DIN-Rail / Wall-Mount |
| Operating Temperature | -40°C to 80°C |
| Enclosure Rating | IP40 metal housing |
Datasheet & Downloads
Frequently Asked Questions
What does an industrial PoE injector do?
An industrial PoE injector adds DC power to an existing Ethernet connection, allowing a non-PoE network switch to power a compatible PoE device through the Ethernet cable.
How many devices can a single-port PoE injector power?
A single-port PoE injector provides one powered Ethernet output and is designed to power one compatible PoE device at a time.
Does the IPE95e provide 95W with a 12V DC input?
No. The IPE95e supports up to 60W PoE output with 12V DC input. With 24V or 48V DC input, the maximum stated PoE budget is up to 95W.
What DC input voltage does the IPE95e support?
The IPE95e supports a 12–48V DC input through its terminal block.
Can the IPE95e be used with a non-PoE network switch?
Yes. Connect the non-PoE switch to the Ethernet Data Input port and the powered device to the PoE Output port.
Does the IPE95e support Gigabit Ethernet?
Yes. Both Ethernet ports support 10/100/1000Base-T Ethernet. SPEC IPE95e V1.0
What types of devices can the IPE95e power?
The IPE95e can be used with compatible PoE devices such as IP cameras and wireless access points, subject to the device’s PoE power requirement. SPEC IPE95e V1.0
How can the IPE95e be installed?
The IPE95e supports both DIN-rail and wall-mount installation. SPEC IPE95e V1.0
How does the input voltage affect the IPE95e PoE power budget?
The IPE95e provides up to 60W PoE output with a 12V DC input and up to 95W with a 24V or 48V DC input. Select the DC supply according to the power requirement of the connected device.
What PoE standards does the IPE95e support?
The IPE95e supports IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt PoE applications and also supports LTPoE++ high-power PSE operation.
What operating temperature does the IPE95e support?
The IPE95e is designed for operation from -40°C to 80°C for industrial environments.
